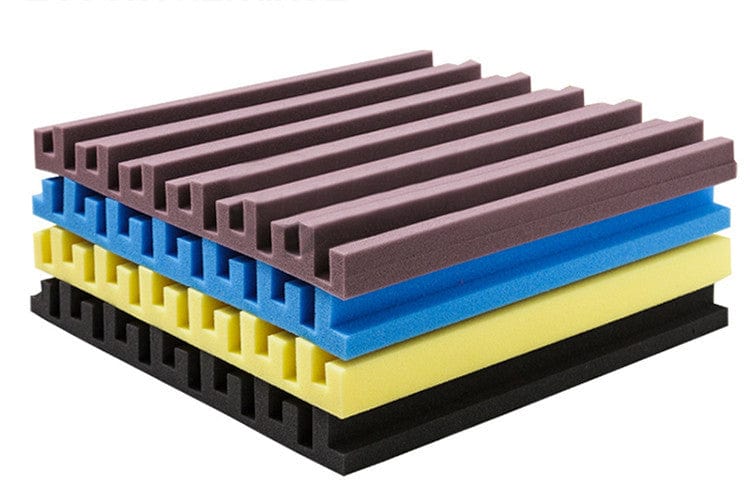

• Brand New Tile Acoustic Foam
• Made by Imported High Quality Foam
• Sound-Absorbing Foam
• High density acoustic foam cell structure for maximum noise absorption
• Helps to flutter echoes and reduce excess reflections and reverberation
• Improves vocal clarity and acoustics of your room
• Highly fire retardant

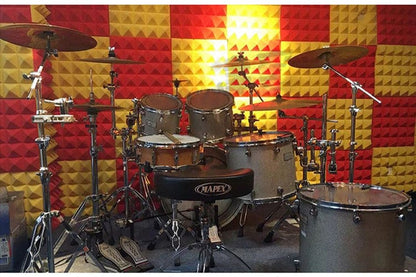

• Ideal for use in recording studios, home theaters and karaoke room
• 6 Colors Available

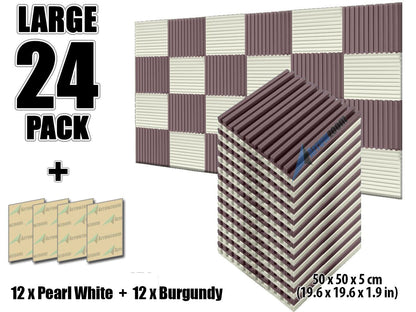

• Size & Dimension: 50 X 50 X 5 cm (19.6 X 19.6 X 1.9 in)
• NOTE:

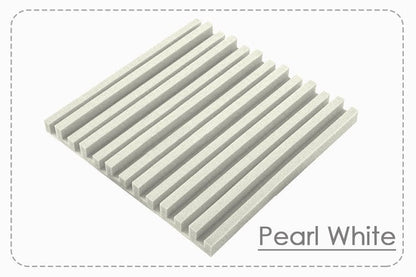

• The color stability of PEARL WHITE foams is affected by UV light, oxidation
  and room temperature. Discoloration (Turn into YELLOWISH color) may
  occur. Before making a purchase please make sure you are agreeing to this.
  We will NOT issue refunds after purchase that claim that color has been change.
• Actual color may slightly differ depends on monitor settings.
• We may split your order into multiple shipments for postage. And due to shipping
  requirements, we compressed (vacuum sealed) the acoustic foam for easy shipping.
  Please kindly give up until 24 to 48 hours for the foam to restore its normal size.

• Density (Core) 29 kg/m3 (1.8 lb/ft3) ASTM D1622
• Compressive Strength 186 kPa (27.0 psi) ASTM D1621
• Tensile Strength 241 kPa (35.0 psi) ASTM D1623
• Open Cell Content 8.0% ASTM D2856
• Water Absorption 1.2 % by volume ASTM D2842
• Water Vapour Permeance
• 50mm sample 42 ng/Pa·s·m2 (0.70 Perms) ASTM E96
• Dimensional Stability
• Volume Change (%) after 28 days
• -0.0 @ -20°C (-29°F)
• 1.5 @ 70°C (158°F) @ 97± 3% RH
• 0.4 @ 80°C (176°F)
• ASTM D2126
• Flame Spread Classification** Flame Spread <500
• Smoke Developed <500
• CAN/ULC-S102
• Including S127
• Time to Occupancy*** 24 Hours CAN/ULC-S774
• Initial Thermal Resistance (50 mm) RSI: 2.45 m2·K/W (R: 13.9 ft2·hr·°F / BTU) ASTM C518
• Hot-Surface Performance Passed when exposed to 93°C for 96 hours ASTM C 411
• Fungi Resistance After 28 day incubation - no fungal growth exhibited ASTM C1338

General Installation Tips
Soft Sound Pyramid Studio Foam is typically surface mounted on the walls within a studio and will improve the overall acoustic performance of the space. It is important that you evenly distribute the panels throughout the room and not cluster in one area. The Pyramid Studio Foam is a modular pattern - the seams don’t always line up perfectly when butting the pieces end to end, this is explained further below.

Tools Required
utility knife, straight edge, tape measure, caulking gun, pencil or chalk line

Cutting

1. Mark the Pyramid Studio Foam to the appropriate size using the tape measure and marker.
2. Cut along the line using the utility knife. With the thicker foams, it may take several passes to completely cut the Anechoic Studio Foam.
3. An alternate cutting method is to compress the foam along the line marked in Step 1. With the material compressed, it will reduce the number of passes that must be made to completely cut the foam.

Installation Methods:

1. Lay the Pyramid Studio Foam out for your specific application - keep in mind that you want the foam evenly distributed throughout the room. Pyramid Foam is a modular design and the seams don’t always line up with the pattern.
2. Measure any areas that need to be field cut on the foam and make the appropriate cuts
   (examples would be around beams, doorways, or if a short piece is needed).
3. After all the pieces have been field cut, put the material back in the appropriate position on the
   wall or ceiling and lightly mark the bottom and side of where each piece will be lightly with a
   pencil to ensure straight application.
4. Glue each piece individually with Acoustic Construction Adhesive. Create a perimeter around the outside of the material staying 1 ½ “ away from the edge. Create an X pattern across the center of the material.
5. Line the material up with the lines you marked in Step 3 and press firmly against the material
   compressing the foam. Repeat step for remaining pieces of foam

F.A.Q Section

1. Is this product sold with whatever I need to mount/stick it on my walls? If not, what product should I buy to do that?

       • Bundle order comes with a free 4 pcs transparent tape. You can also order 24 pcs tape Click Here ?

2. Are these the right panels for soundproofing a subwoofer? If not, what should i get instead?

       • It depends on the room size these are sufficient but you should drop a few more dollars and get something a little better quality.

3. Can i apply this on my door (inside my room) to prevent noisy neighbor or the noise outside?

       • Yes, you can. But it wouldn’t keep 100% of the sound out, however. These are really designed to insulate a room and dampen sound before it hits a wall and reflects back. They will keep some sound out, but not too much. If you're going to put it on a door just made sure you over lap the gaps between the door and the wall on all sides. Like, put the tile about an inch past the edge of the door.

4. Would these be good for sound proofing a bedroom?

       • No, that's really not what these are for. They provide echo damping, not sound proofing. Sure, if you coated a door with the stuff on both sides it might lessen the sound a bit, but it's really not what they're meant to do. These panels are only designed to reduce room noise inside, not noises from outside.

5. For the Tile Panel, is it small squares or is it a huge board?

       • It is a huge square with the size of 50cm X 50cm (19.6 in X 19.6 in)

6. Would this work for soundproofing an entire room for a recording studio?

       • This product will not 100% soundproof a room. But it will help with sound-isolation of the room.

7. Can I spray paint them to make them a little more attractive?

       •    You can, but we wouldn't advise this. Not only they are extremely porous--because clearly, its foam, it would change the condition to do what they were originally intended to do (to collect sound). We suggest you buy different colors of panels, we offer different colors for these kind of situations.

8. Can this product be used outdoors?

       • No, if it’s uncovered open area, it wont last the rain and sun. If it’s on a covered area the dust or dirt may affect the quality of the foam and may affect it’s ability to collect or isolate sound.

9. What is it made of?

       • Our Acoustic foam is a lightweight open celled foam material made from Acoustic foam polyester, and also extruded melamine foam.

10. How do I arrange these around my room with studio monitors?

       • There are a couple of ways of doing it, one way is to arrange all of them together on your wall opposite of your monitors another way is to spread them out evenly around the room. For more ideas on you can check on you tube.

11. Are these flame retarded or fire proof?

       • Yes, they are

12. It really echoes when I am talking on the phone at normal volumes. Will this dampen my voice?

       • Yes it will substantially. But it depends on the size of the room on how much it will absorb the sound.

13. Will this soundproof the intense bass of my subwoofer?

       • Not really, but you can buy our Bass Trap Foam to lessen the intense bass.

14. Can these be cut/altered to fit into certain spaces?

       •Yes. Quite easily.

15. Did the foams undergo an Sound Absorption Test?

       • Yes, after manufacturing, the foams will undergo an Sound Absorption Test.
